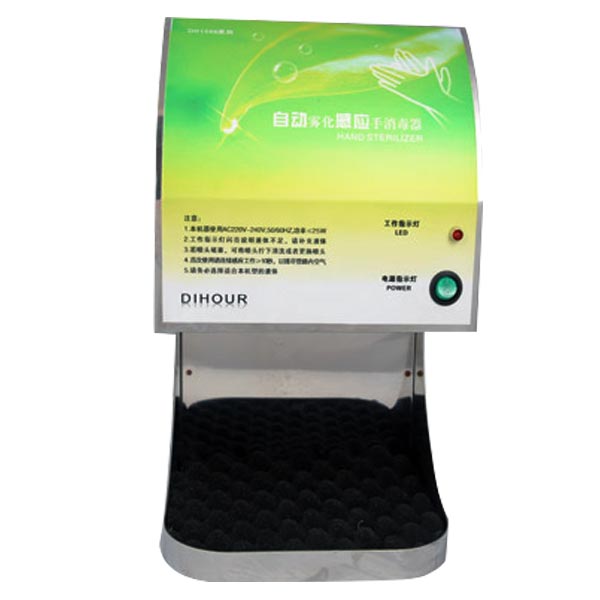

Stainless Steel Automatic Hand Sanitizer DH1598T
automatic hand sanitizer dispenser
Material:Stainless Steel 304#
Working Temperature:5-40℃
Capacity:2000CC
Spay Amount Per Second:0.6-0.8ml/s

Manual download

  • Specifications
  • FAQ
  • VIDEO
  • Comments

    • Automatic hand sanitizer dispensers With dust-proof design, according with GMP standard
    • liquid hand dispenser wall mounted Infrared sensor control
    • Disinfection operation is simple and avoids cross infection
    • Apparent fashionable style of Europe and America
    • Completely atomization, can save disinfectant and disinfecting time
    • Replaceable nozzle design and quickly solution to nozzle clogging
    • Full and less disinfectant warming
    • Adapts to special disinfectant for hand and skin or 75% alcohol
    • Extended product lifespan


  • The work incicating lamp is not bright

    Reason

    The power switch has not put through
    The power supply is not connected
    The fuse breaks

    Action

    Turn on the switch.
    Check-up the connection
    Check-up the fuse



    The sanitizer can not work


    Reason

    Hand is too far away from the induction area.
    Induction window is dirty.


    Action

    Extends the hand from the induction within 8-13cm
    Clean the induction window



    Nozzle jam


    Reason

    There is impurity in the liquid
    Not using for a long time,impurity jam the nozzle.
    If the woriding environment is not clean,the nozzle is very easy to be jammed by the impurity.

    Action

    Use the funnel to add liquid.
    Use proper liquid.
    Put the nozzle in alcohol or in the boil water to get rid of the impurity.
    Unscrew the nozzle to clean it or change the nozzle.



    Liquid dripping


    Reason

    Liquid overflow

    Action

    The buzzer alarm the liquid is full.



    The spary amount is not enough


    Reason

    The network voltage is extremely low

    Action

    The sterilizer can not be used when the voltage is low.You can only use it when the power voltage is AC 220-240V 10%.


    Explanation


    1 If you can not obviate the malfunction yet after tying the suggested methods,please connect with the franchiser to get further help.
    2 You should not to teardown the sterilizer by yourself,otherwise,you will lose the maintenance qualifications.
